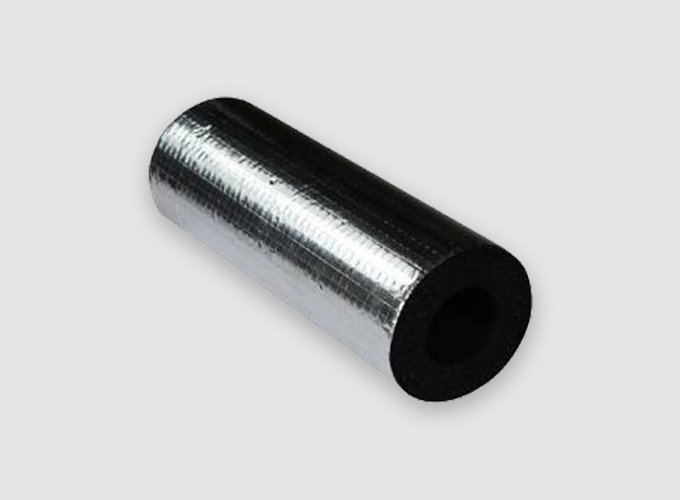

Aeroflex EPDM Insulation Tube with Aluminum Foil

Features

FAB1
  • Low density,having low & stable K value
  • UV & Weather resistance
  • Non polar
  • Does not corrode copper tubing
  • Nitrosamine free in accordance to FDA norms
  • Closed cell elastomeric EPDM Insulation
  • Best for clean room applications
FAB2
  • High energy saving & Superior thermal insulation properties
  • Free from cracking
  • Environment friendly
  • Excellent compression strength
  • Smooth surface & less dirt

Applications

  • Construction Industry
  • Pharma Industry
  • Hotel/Hospital & Cold storage Industry
Properties Value / Value Range UOM Standard Applied
Density 48-80 Kg/m3 Kg/m³ ASTM D 1667
Thermal Conductivity (W/mk)
Mean Temp. (24°C)
= 0.035 W/mk W/mk ASTM C 177
Flammability Class V-0 - UL 94
Class A - ASTM E 84
Water Vapor Permeability (g/Pa.s.m) - g/Pa.s.m ASTM E 96
UV Weather Resistance Very Good   ASTM G 154
Ozone Resistance No Crack - ASTM D 1149
Temp. Range -57° C to 125° C °C -
Corrosion to Copper, Stainless Steel Non corrosive - DIN 1988
Nitrosamine Contents Not Present - U.S.FDA
Close Cell Foam Yes - -
Standard Width/Length As Per Packing Standard - -
