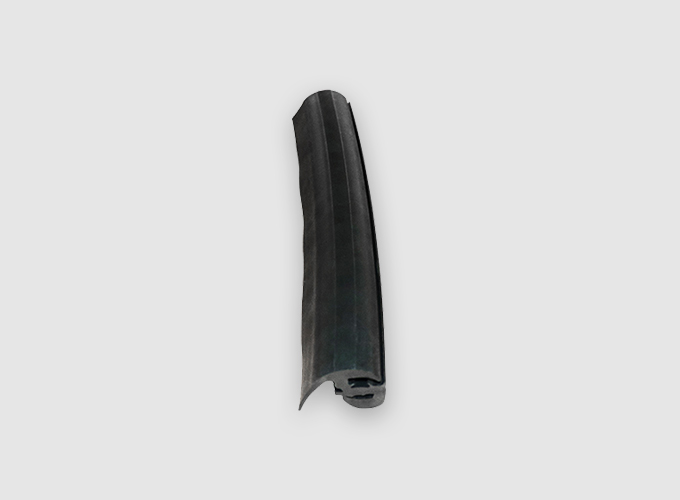

Solid Windhshield

Features

Applications

Properties	Value / Value Range(Solid Part)	UOM	Standard Applied
HARDNESS	70± 5 (Other on request)	Shore A	ASTM D 2240
SPECIFIC GRAVITY	-	-
TENSILE STRENGTH	70 Min.	Kgf/cm2	ASTM D 412
ELONGATION AT BREAK	200 Min.	%	ASTM D 412
TEAR STRENGTH	15 Min	kgf/cm	ASTM D 0624
APPLICATION TEMPERATURE	-40 ~ 120	°C	ASTM 1329
AGE RESISTANCE AT 70 OC FOR 70 HRS		°C	ASTM-D573
HARDNESS	+10'-5	D	ASTM D 2240
TENSILE STRENGTH	-25 Max.	D	ASTM D 412
ELONGATION AT BREAK	-35 Max.	D	ASTM D 412
COMPERSSION SET (%) AT 70 OC FOR 22 HRS	50 Max.	%	ASTM D 395
OZ0NE RESISTANCE	NO VISIBLE CRACKS		ASTM-D1149
O3 CONCENTRATION 50		pphm
TEST TEMPERATURE 40		°C
ELONGATION 20		%
TESTING DURATION 72		Hrs
